Brand Name : CONO
Model Number : Orion 335RL
Certification : ISO,CE,ROSH
Place of Origin : China
MOQ : 1 PCS
Price : Negotiable
Payment Terms : L/C, T/T, Western Union, MoneyGram
Supply Ability : 10000 PCS PER YEAR
Delivery Time : 7-30 Days
Packaging Details : Negotiable
Microbolometer Type : Uncooled
Resolution : 384×288
Pitch : 17μm
Rate : 50Hz
Zoom : 2x/PIP/4x
Water proof : IP67
Size : 170×100×67mm
name : Tactical Rifle Sight
Technical Data Sheet of Orion rifle+L series | |
Item | Orion335RL |
Detector | |
Type | Uncooled |
Resolution | 384×288 |
Frame Rate | 50Hz |
Pitch | 17μm |
Spectral range | 8-14μm |
NETD | less then 50mk |
Optical Characteristics | |
Objective lens | 35mm |
Magnification | 1.4x |
FOV | 10.6°×8.0° |
Close-up range | 5m |
Eye Relief | 60mm |
Dioptre Adjustment | -5D-4D |
Functions | |
Zoom | 2x/4x/PIP |
Palette | 10 optional(can be customized) |
Start uptime | less than 5 seconds |
Startup image | Can be customized |
Menu and information | GUI(Can be customized) |
Image Enhancement | DDE |
Contrast and Brightness | AGC |
Online update | Both code and GUI resources |
reticle type | 5 optional(Can be customized) |
ballistic and zeroing | 5 types can be created by user |
Range finder | Software Approximate ranging |
Display | |
Type | OLED |
Resolution | 1024×768 |
Power Supply | |
Battery | 2×CR123 |
External Power Supply | 5V micro USB |
Battery life | 5h |
Physical Characteristics | |
weight without battery | 550g |
size,(mm) | 170×100×67 |
Environmental Compatibility | |
Waterproof | IP67 |
Operating Temperature | -25℃-50℃ |
Storage Temperature | -40℃-70℃ |
shock tolerance | 1200g/ms |
Operating Temperature | -25℃-50℃ |
Storage Temperature | -40℃-70℃ |
shock tolerance | 1200g/ms |
Wi-fi | |
Frequency | 2.4GHz |
Standard | 802,11 b/g/n |
Line-of-sight reception range, m | 15 |
Laser Rangefinder | |
Safety class for laser equipment | 1 |
according to IEC 60825-1:2014 | |
measuring range, m | 5-600 |
Measurement accuracy, m | ± 1 |
We understand that lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
It is our mission to continue to design, build, test and ship the very best optoelectronics devices on the market.
![]() |

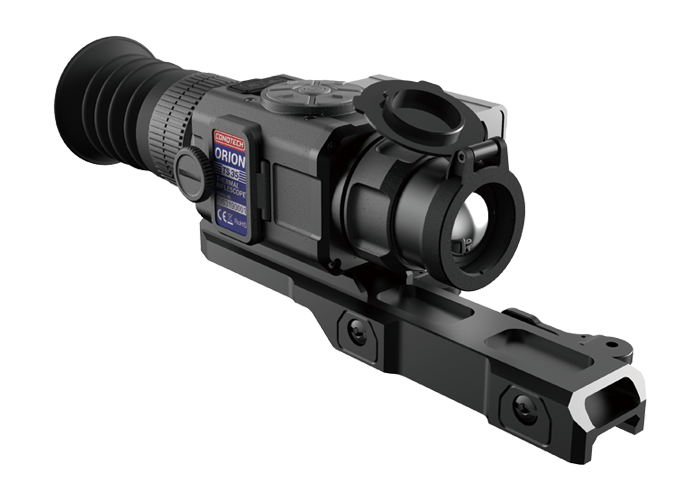

Compact Design Tactical Rifle Sight Infrared Thermal Imaging Scope Orion 335RL Images |
